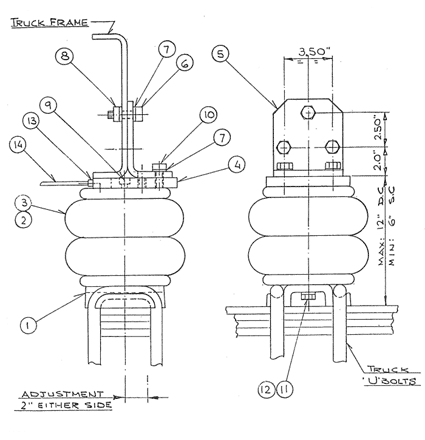

REQUIREMENTS
| ITEM | PART NO. | DESCRIPTION | QUANTITY |
|---|---|---|---|
| 1 | 20168 | Bottom Casting | 2 |
| 2 | 10086 | D.C. Bellow | 2 |
| 3 | 10110 | S.C. Bellow | 2 |
| 4 | 20166 | Top Plate | 2 |
| 5 | 20167 | Angle Bracket | 2 |
| 6 | 10088 | H.H.C.S. 1/2" unc x 2" | 6 |
| 7 | 10091 | Washer 1/2" dia. | 16 |
| 8 | 10090 | Locknut 1/2" unc | 6 |
| 9 | 10089 | Allen Screw 3/8" unc | 4 |
| 10 | 10087 | H.H.C.S. 1/2" x unc 1" | 4 |
| 11 | 10095 | H.H.C.S. 3/8" unc x 1" | 4 |
| 12 | 10092 | Washer 3/8" dia. | 4 |
| 13 | 10031 | 1/4" Elbow/Fitting | 2 |
| 14 | 10097 | 1/4" Tubing | 40 |
| NS | 20170 | Top Offset Plate | |
| NS | 20172 | Bottom Offset Plate | |
| NS | 20168 S | Casting 3" Spring | |
| NS | 20220 | Bottom Bracket Round 'u' Bolt |
